Skaarhoj Blue Pill Server

Skaarhoj Blue Pill Server ulepsza ekosystem urządzeń Skaarhoj obsługujących UniSketch OS, pozwalając połączyć wiele kontrolerów w jeden system.

Blue Pill komunikuje się z panelami UniSketch za pośrednictwem rdzenia urządzenia "Raw Panel" w UniSketch. Ten rdzeń urządzenia istnieje już od dłuższego czasu jako sposób, w jaki deweloperzy zewnętrzni mogą komunikować się z kontrolerami UniSketch. Dzięki tej technologii, Blue Pill po prostu przejmuje kontrolę nad panelami UniSketch i oferuje bezprecedensowe możliwości, których sam UniSketch nigdy nie byłby w stanie osiągnąć. To zawiera:

• Praktycznie nieograniczona liczba połączonych paneli SKAARHOJ (bezszwowa modułowość)

• Praktycznie nieograniczona liczba integrowanych urządzeń (kamery, przełączniki, routery itp.)

• Nowe integracje niedostępne w UniSketch (np. nowe wersje aparatów Canon, RED, Panasonic, Blackmagic i wielu innych)

• Funkcje dostarczane przez system, takie jak ustawienia wstępne (makra / osie czasu), wirtualne wyzwalacze itp.

Więcejo BluePill Server

Prezentacja na kanale YouTube Skaarhoj

Blue Pill Server enhances the UniSketch ecosystem by combining multiple controllers into a single seamless controller. For example, you can take a PTZ Pro and combine with a Frame Shot and have the Frame Shot show thumbnails for your preset recalls. The selected camera on the PTZ Pro will drive the preset selection on the Frame Shot because to Blue Pill they are essentially just one single panel.

Blue Pill Server talks to UniSketch panels via the Raw Panel device core on UniSketch. This device core has been around for a long time as a way for third party developers to interface with UniSketch controllers. With this road tested technology, Blue Pill Server simply takes control over the UniSketch panels and offers unprecedented possibilities that UniSketch could never do on its own. This includes:

• Virtually unlimited SKAARHOJ panels combined (seamless modularity)

• Virtually unlimited devices being integrated (cameras, switcher, routers, etc.)

• New integrations not available on UniSketch (like new camera releases from Canon, RED, Panasonic etc., just for a start)

• System provided features such as presets (macros / timelines), virtual triggers etc.

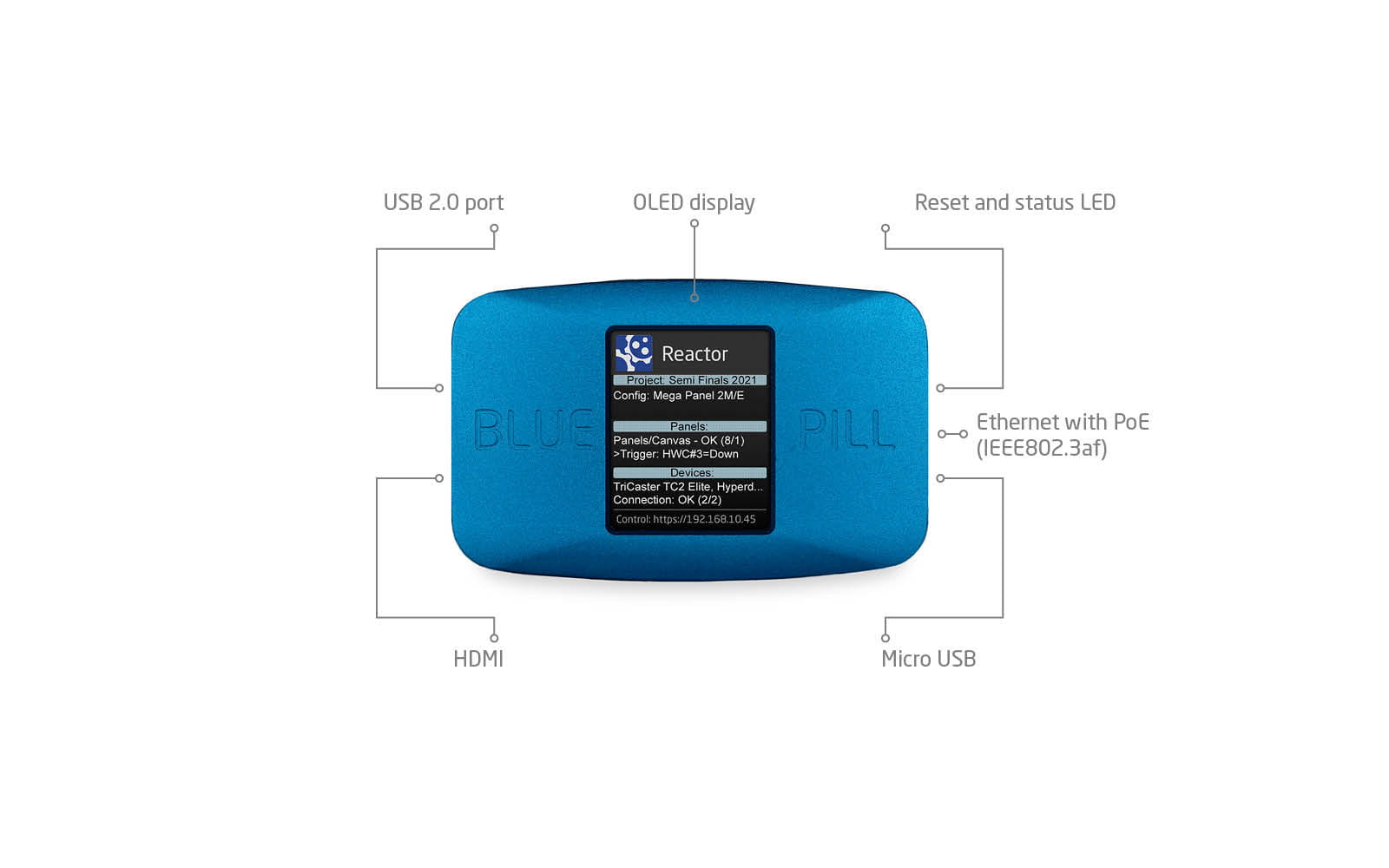

Features

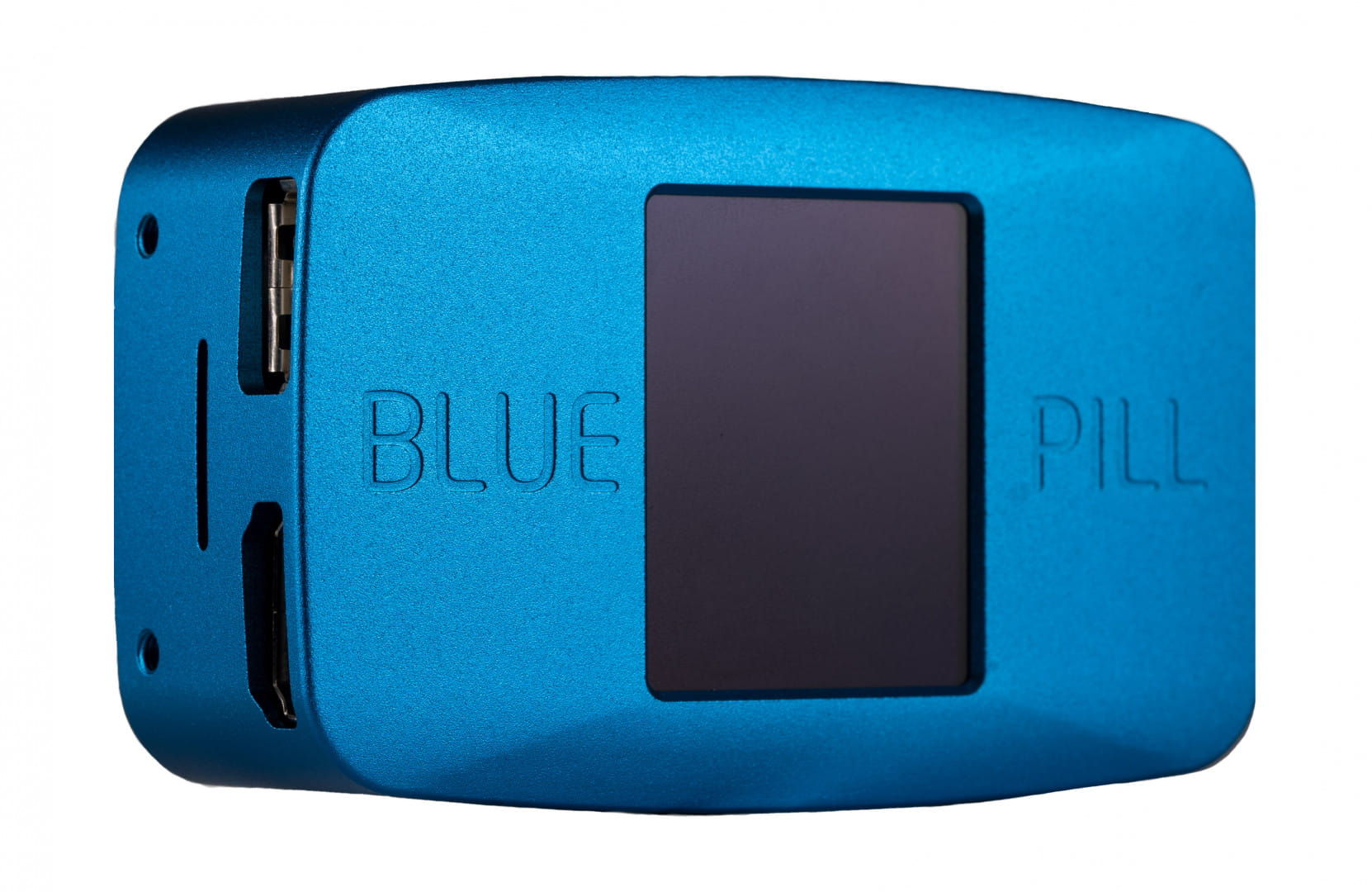

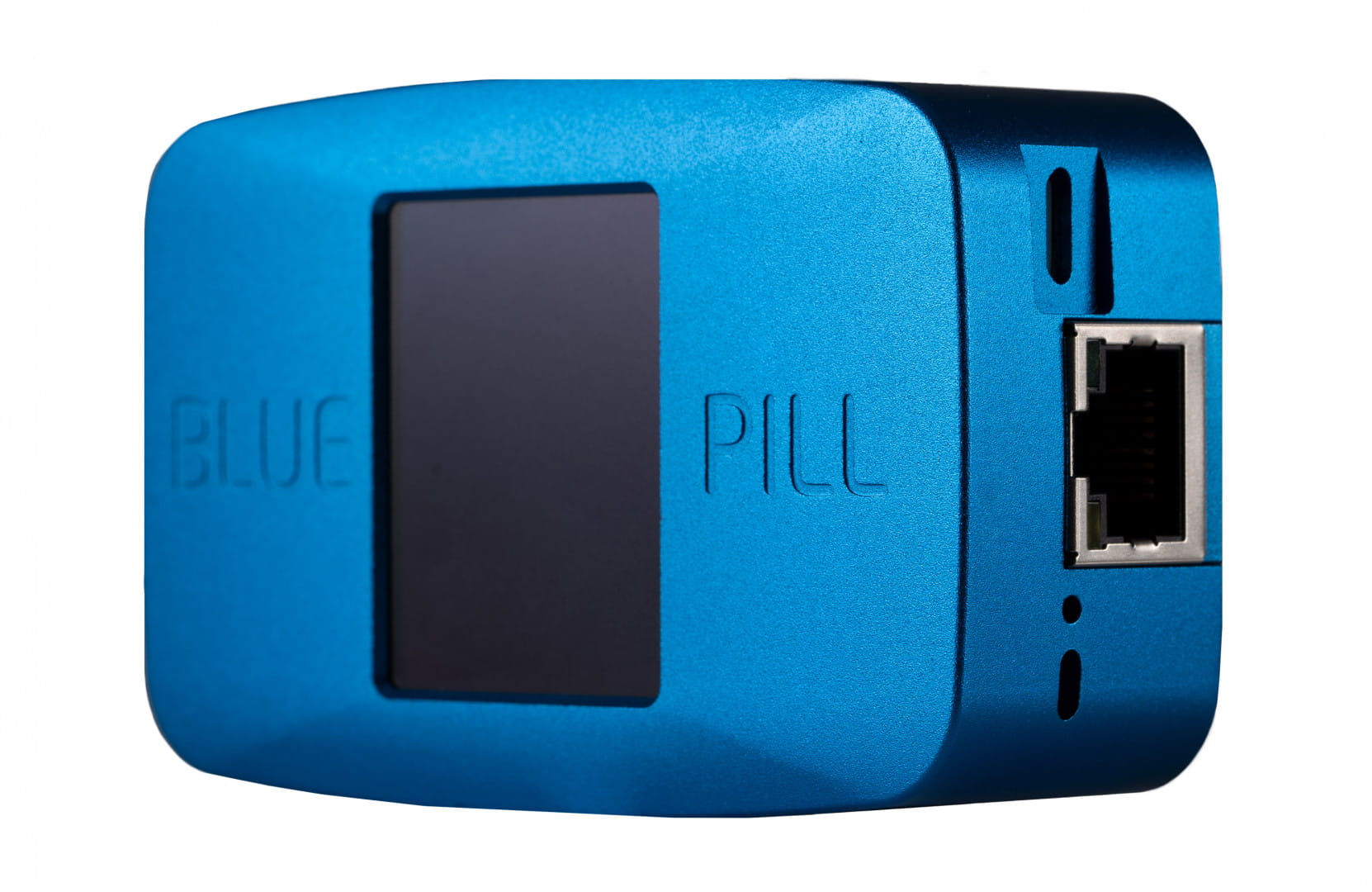

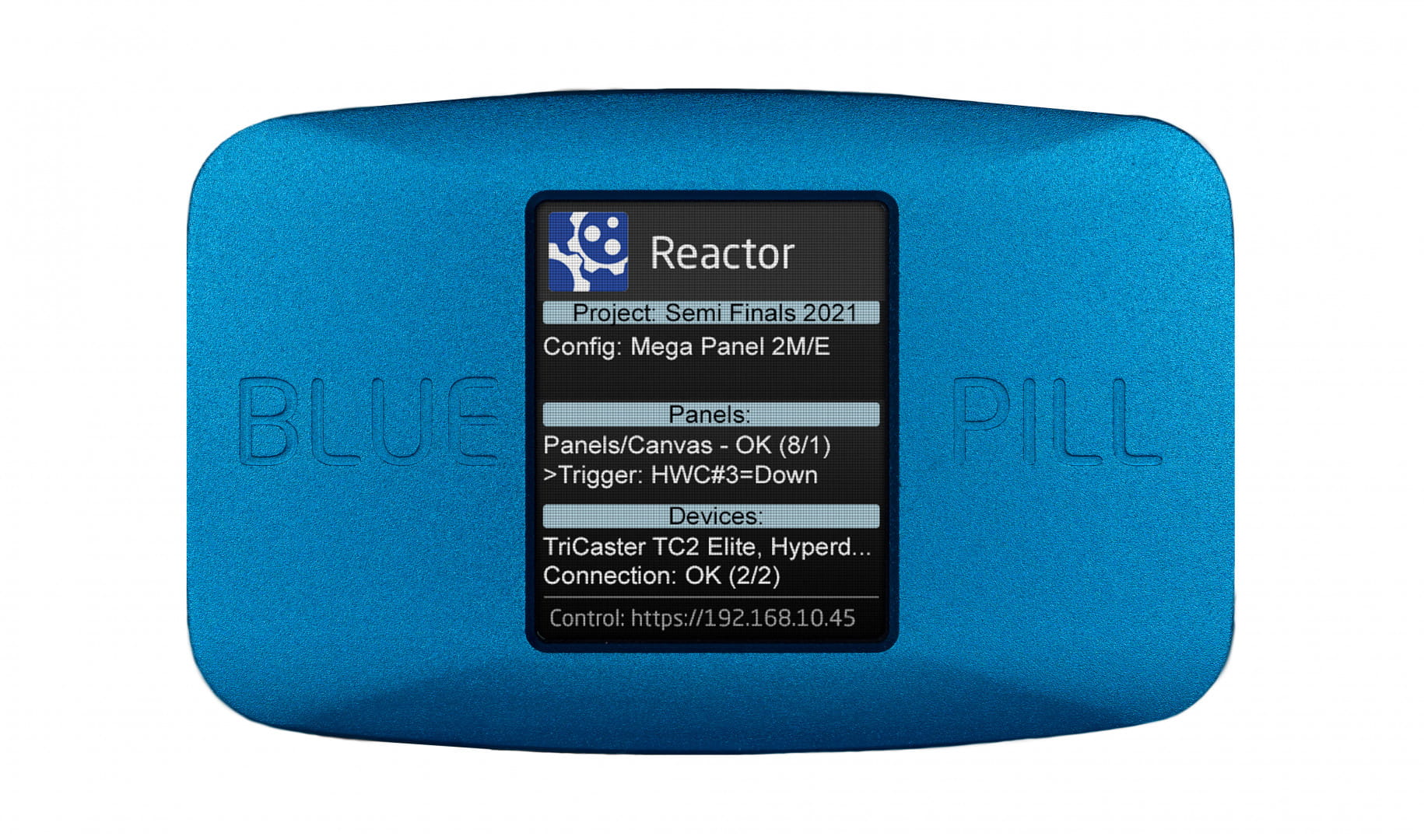

• OLED display with color support allows you to display content on your BluePill. May it be parameters from your cameras and switchers or custom graphical content, Reactor will help you create your ideal visualization. Never lose your IP again!

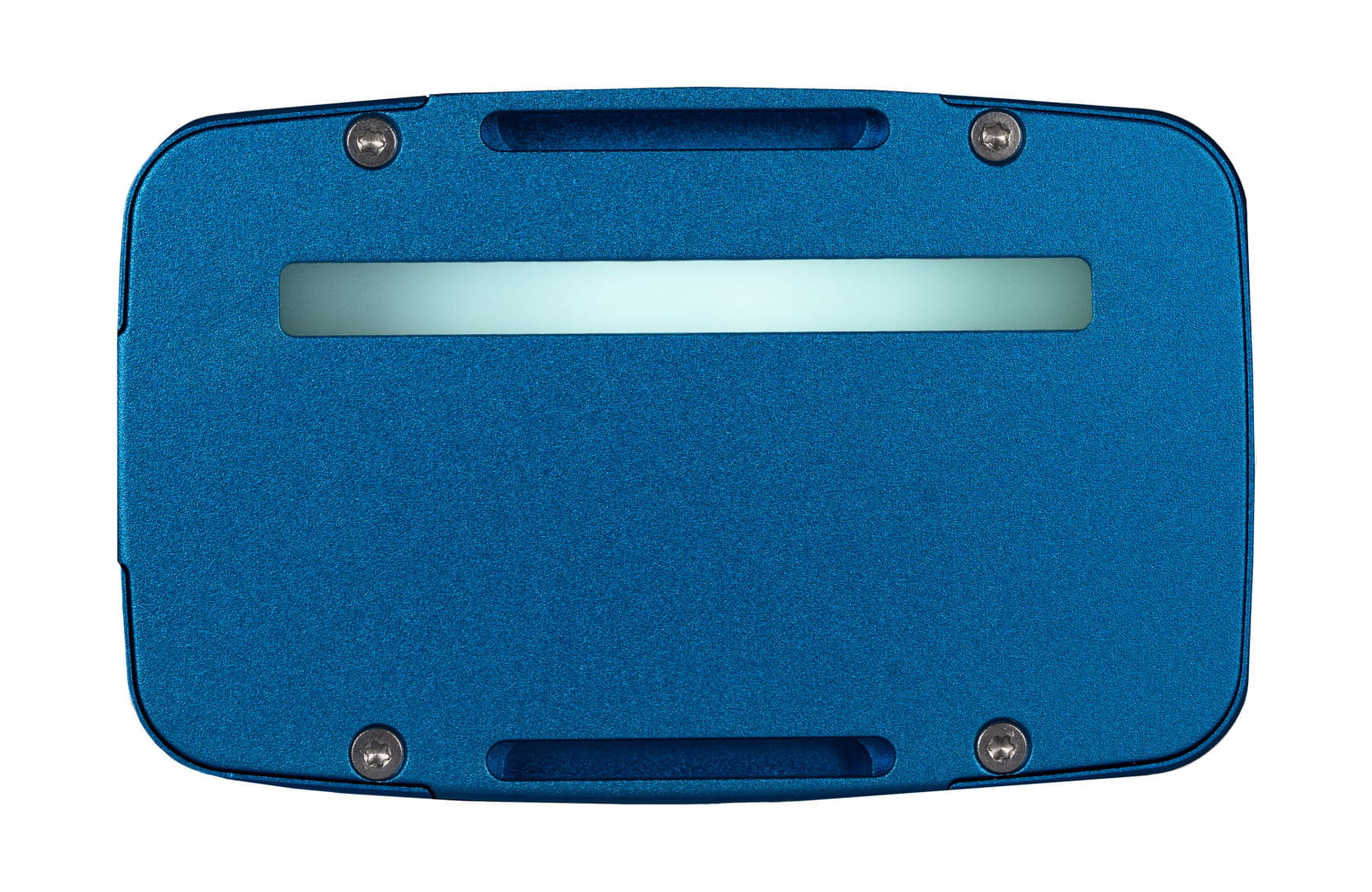

• The LED light bar on the back of your BluePill can be configured to any color and intensity. You can also configure this feedback based on your device parameters or custom conditions. Perfect for that extra tally light!

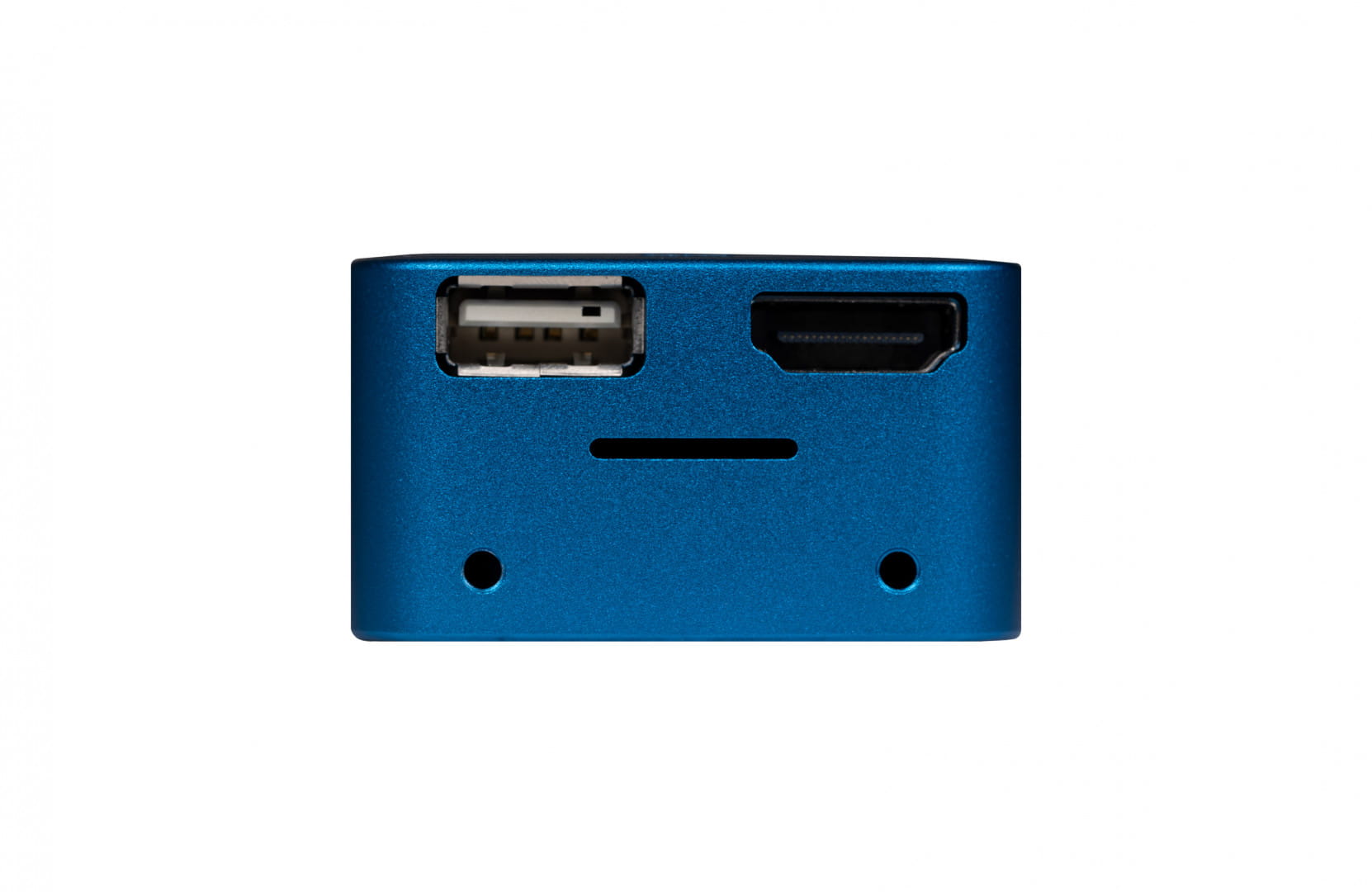

• BluePill features a USB 2.0 port. This can be used for any third party frame-grabber in conjunction with our Frame Link application to create visual thumbnails for your panel. With this port, you can also hook up a hard-drive, keyboard, mouse, and more to extend the functionality of your BluePill.

• The Micro USB port on your BluePill is capable of powering your BluePill in situations where PoE is not accessible to you. It can also power external devices in cases where PoE is powering the BluePill. Additionally, it provides an option to program or reset the device through serial connection or read data from external devices.

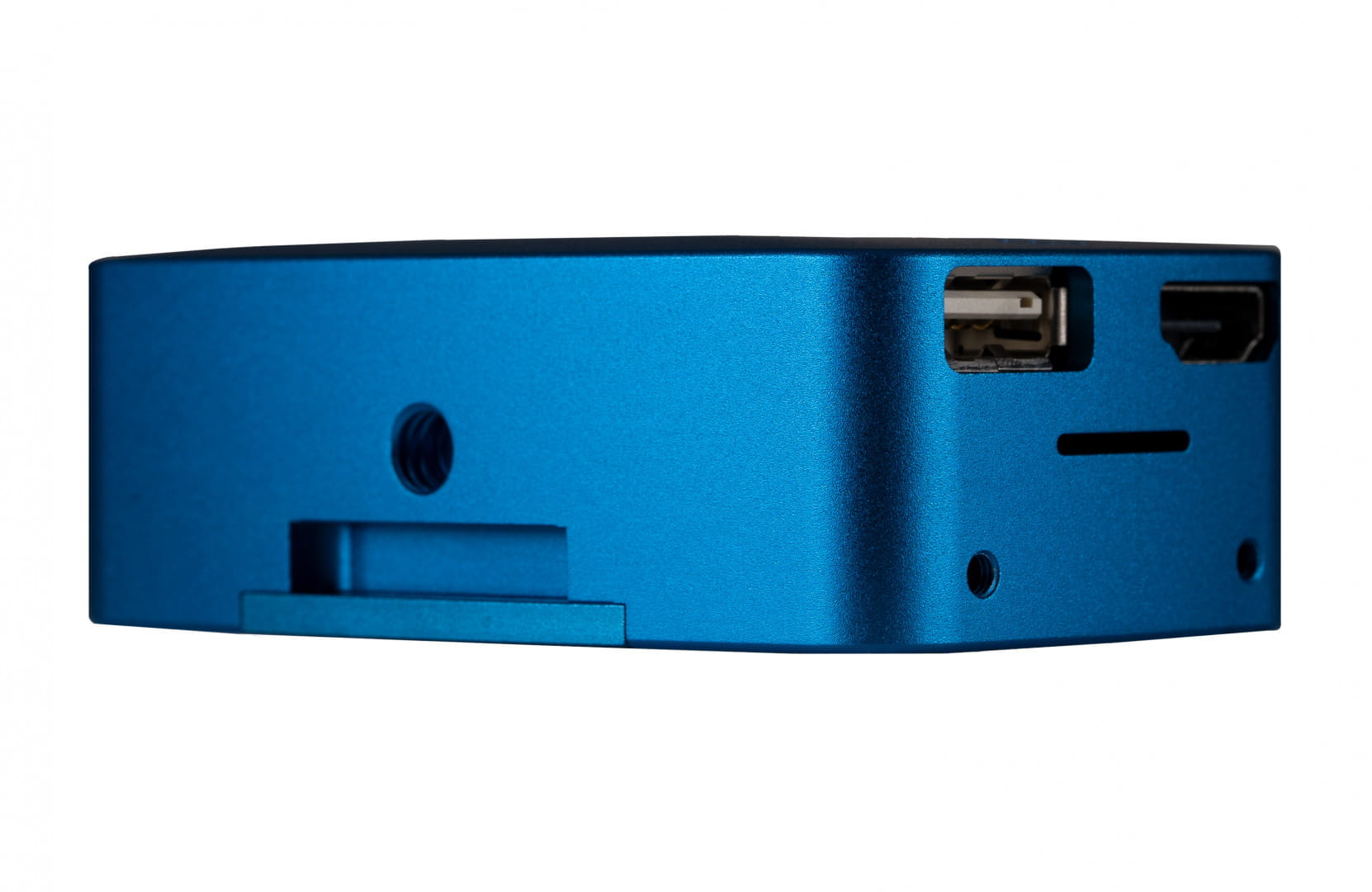

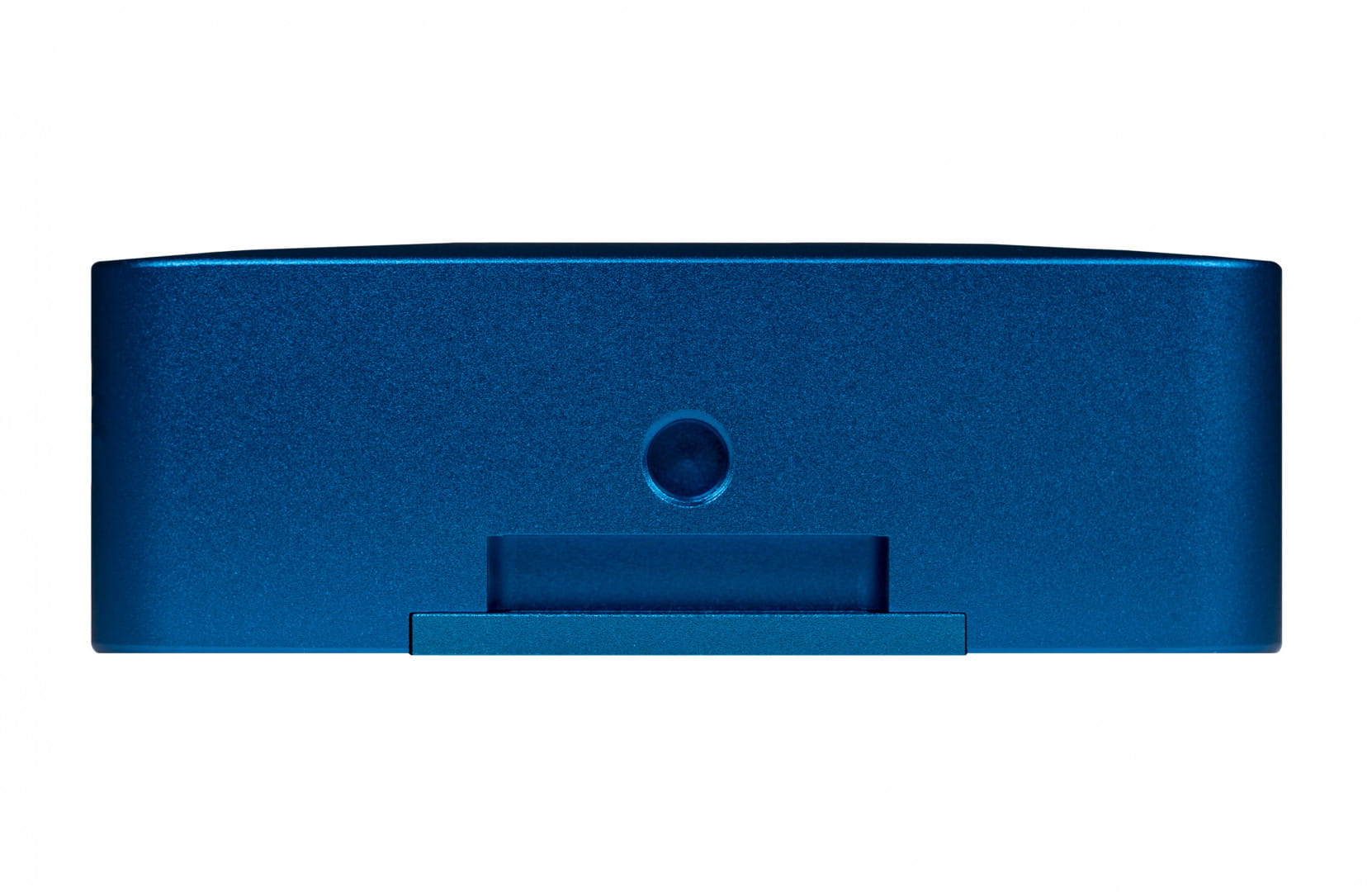

• BluePill come with two ¼”-20 UNC standard screw holes for easy mounting anywhere in your setup.

• No screws? No problem! BluePill also comes with two slots for strips. 2.5 cm wide cutouts can be used to help you attach it anywhere! Strap it down, zip tie it, tape it, use cable binders, we won’t judge. Duct tape not included!

• Reset and status LED

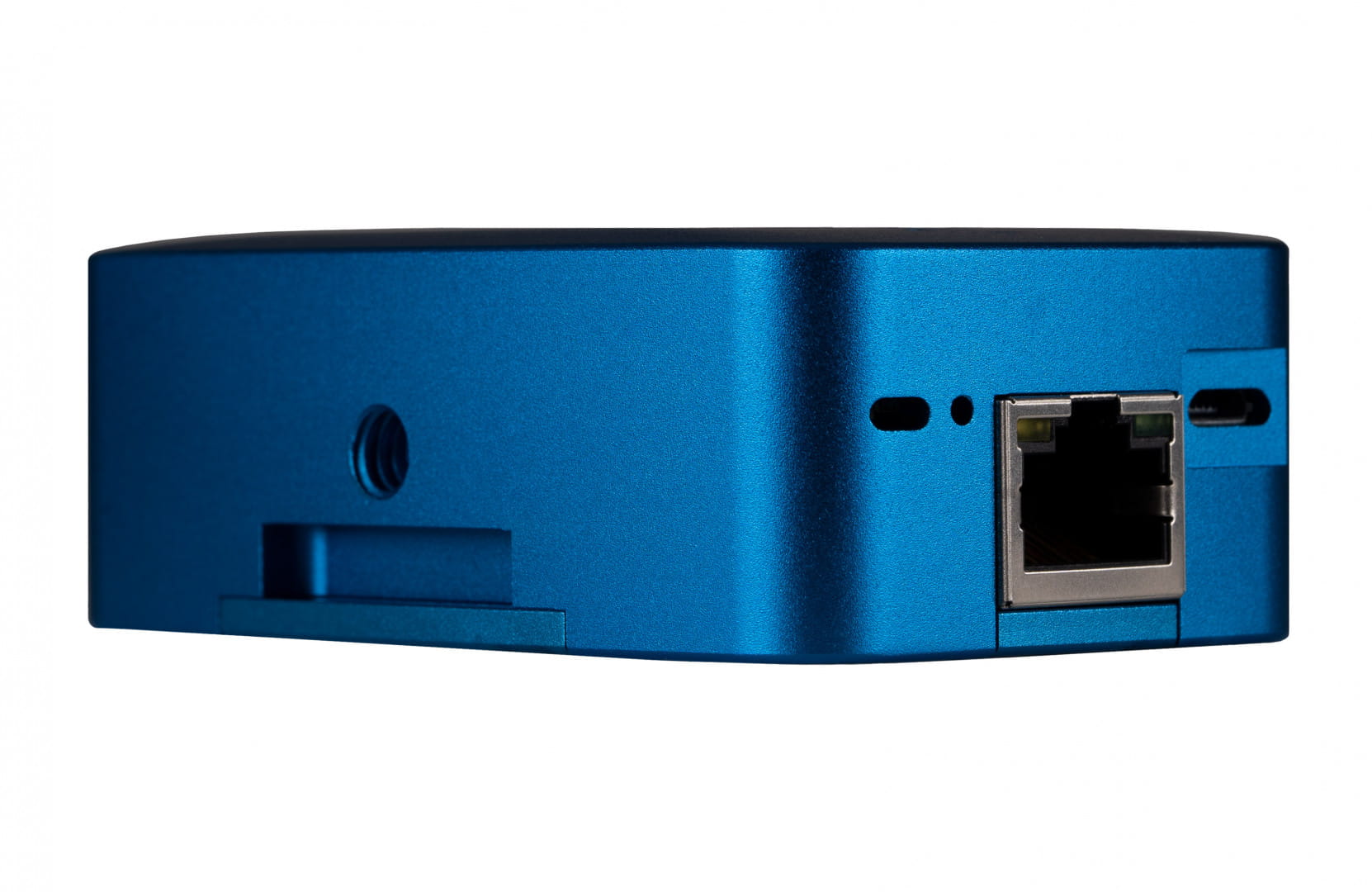

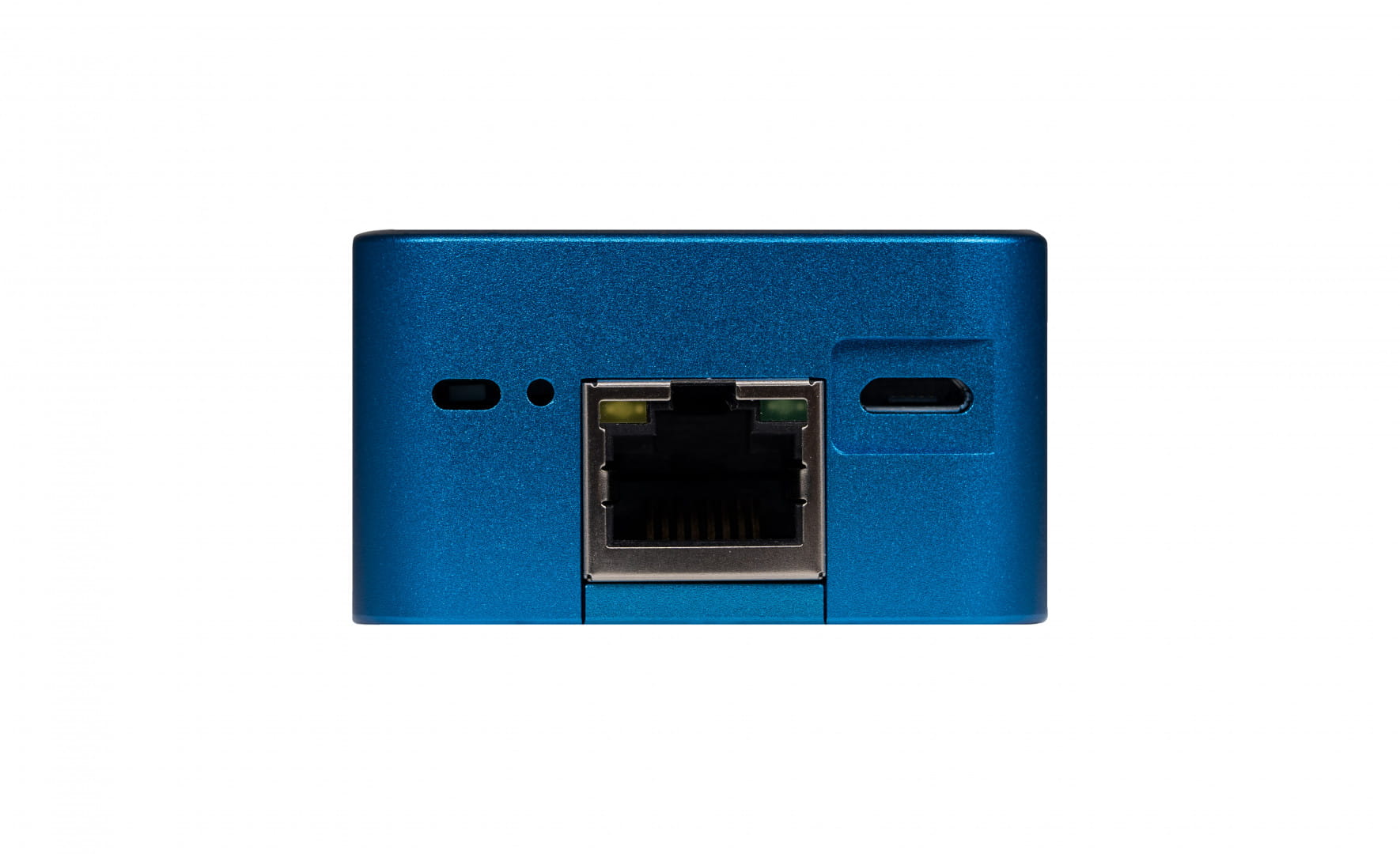

• Ethernet with PoE (IEEE802.3af/t)

• HDMI output allows you to send video feed into any HDMI enabled monitor or device. This opens up loads of possibilities for future tooling such as project dashboards, camera feeds, thumbnail banks, and more served from your BluePill!
